Name: SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY070703
Price: 110.00 USD
Availability: InStock

Rumah > Produk > Layar Kawat Wedge Johnson >

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe

SS304 Wedge Wire Screen Pipe

Wedge Wire Screen Pipe

stainless steel wedge wire screen

Tempat asal:

Kota Hengshui, Provinsi Hebei, Tiongkok

Nama merek:

HengYuan

Sertifikasi:

ISO,CO,FORM E,CIQ, etc

Nomor model:

HY070703

Hubungi kami

Permintaan Penawaran

Rincian Produk

Nama:

Stiker Berbasis Slot Kontinyu Wedge Wire Screen Pipe

Bahan:

Baja Tahan Karat 304

Diameter:

25mm

Panjang:

200 mm

slot:

0,25mm

kabel:

Kawat Vee 1,5 * 2mm

Batang penyangga:

2*3mm kawat Vee

Berakhir:

Berulir Pria

Teknik:

Pengelasan Titik

Fitur:

non-penyumbatan

Aplikasi:

Penyaringan

Paket:

Kotak Kayu

Jenis Bisnis:

Produsen

Tes Mesin:

Disediakan

Produk-produk terkait

video

Continuous Slot Wedge Wire Screen Cylinders For Oil Well

Dapatkan Harga Terbaik

video

OD 2-3/8" Slot 100μm SS304 Johnson Type Wedge Wire Screen Filter

Dapatkan Harga Terbaik

video

Stainless Steel 316L 0.5mm Slot Wedge Wire Oil Screen Pipe 2-7/8" OD

Dapatkan Harga Terbaik

video

Full Welded Wedge Wire Wound Screen Of Stainless Steel

Dapatkan Harga Terbaik

Hubungi kami

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Hubungi sekarang

Deskripsi Produk

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe

The SS rod based continuous slot wedge wire screen pipe liners which require external supports and also self-supporting balanced baskets for the centrifuge manufacturers.

These rod based continuous slot wedge wire screen pipes are more complex than the other types of screens requiring extra strength to withstand the stresses of centrifuge dryers.

These rod based continuous slot wedge wire screen pipes are typically used in mineral processing for coal, potash, salt, sand, pulp,paper and a variety of chemicals. They are also used for refuse removal from oil and gas drillers.

Benefits of SS Rod Based Continuous Slot Wedge Wire Screen Pipe

High shive and stickies removal efficiency.
Maximized flow capacity.
Durable,extended operating life.
Application flexibility.
Dimensional accuracy.

Material	Stainless steel 304, 316, 316L
Diameter	26mm-1300mm
Shape	Cylindrical
Slot	0.02-100mm
Thickness	4mm
Feature	Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells
Application	--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio

Rod Based Continuous Slot Wedge Wire Screen Pipe Characteristics:

1. Wedge Wire Screen Pipe has high mechanical strength, can bear large pressure drop.

2. Wedge Wire Screen Pipe has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

3. The wedge type slot can improve backflushing and regeneration performance.

4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

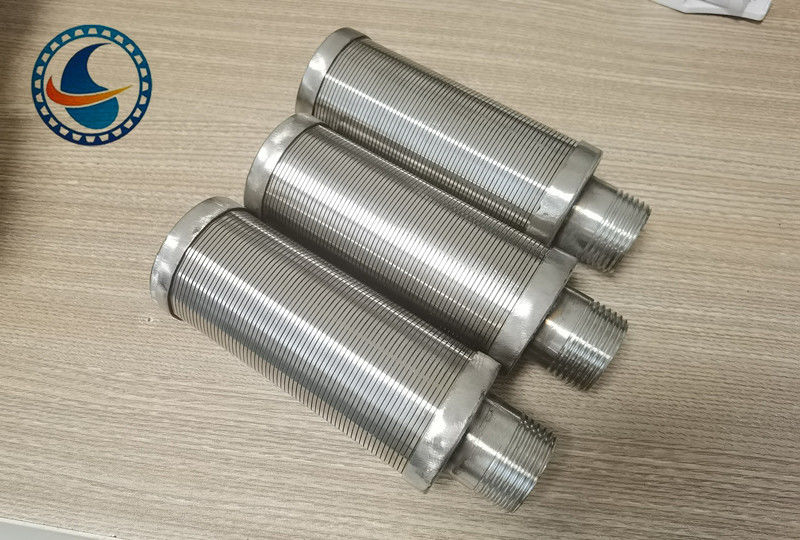

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe 0
