Name: SS304 Vee Shaped Profile Wire Wedge Wire Screen Filter Pipe
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY070803
Price: 110.00 USD
Availability: InStock

Rumah > Produk > Layar Kawat Wedge Johnson >

SS304 Vee Shaped Profile Wire Wedge Wire Screen Filter Pipe

SS304 Vee-shaped Profile Wire

Wedge Wire Screen Filter Pipe

SS304 wedge wire screen filter

Tempat asal:

Kota Hengshui, Provinsi Hebei, Tiongkok

Nama merek:

HengYuan

Sertifikasi:

ISO,CO,FORM E,CIQ, etc

Nomor model:

HY070803

Hubungi kami

Permintaan Penawaran

Rincian Produk

Nama:

Pipa Filter Layar Wedge Kawat Wedge Berbentuk VEE

Bahan:

Baja Tahan Karat 304

Diameter:

140mm

Panjang:

1000 mm

slot:

0,2 mm

kabel:

Kawat Vee 1,5 * 2mm

Batang penyangga:

2*3mm kawat Vee

Berakhir:

Berulir Pria

Teknik:

Pengelasan Titik

Fitur:

non-penyumbatan

Aplikasi:

Penyaringan

Paket:

Kotak Kayu

Jenis Bisnis:

Produsen

Jenis Penyaring:

Dari luar ke dalam

Produk-produk terkait

video

Continuous Slot Wedge Wire Screen Cylinders For Oil Well

Dapatkan Harga Terbaik

video

OD 2-3/8" Slot 100μm SS304 Johnson Type Wedge Wire Screen Filter

Dapatkan Harga Terbaik

video

Stainless Steel 316L 0.5mm Slot Wedge Wire Oil Screen Pipe 2-7/8" OD

Dapatkan Harga Terbaik

video

Full Welded Wedge Wire Wound Screen Of Stainless Steel

Dapatkan Harga Terbaik

Hubungi kami

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Hubungi sekarang

Deskripsi Produk

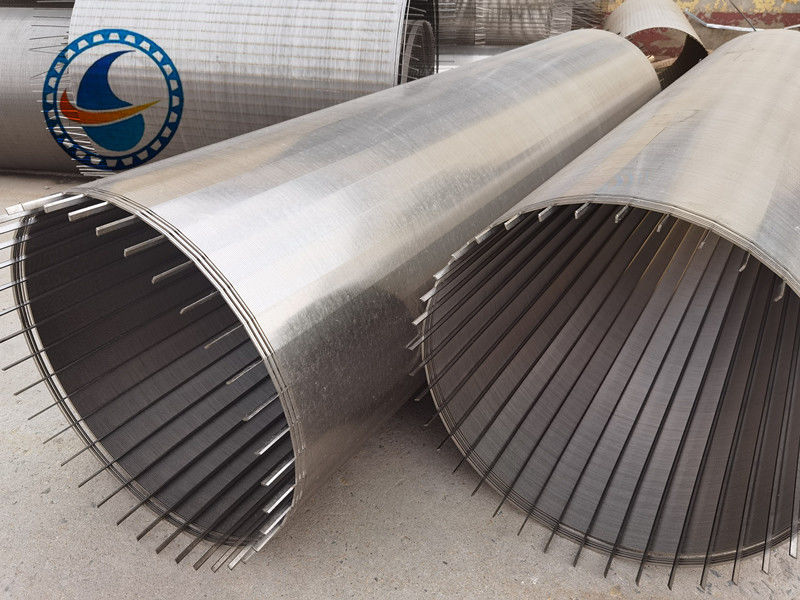

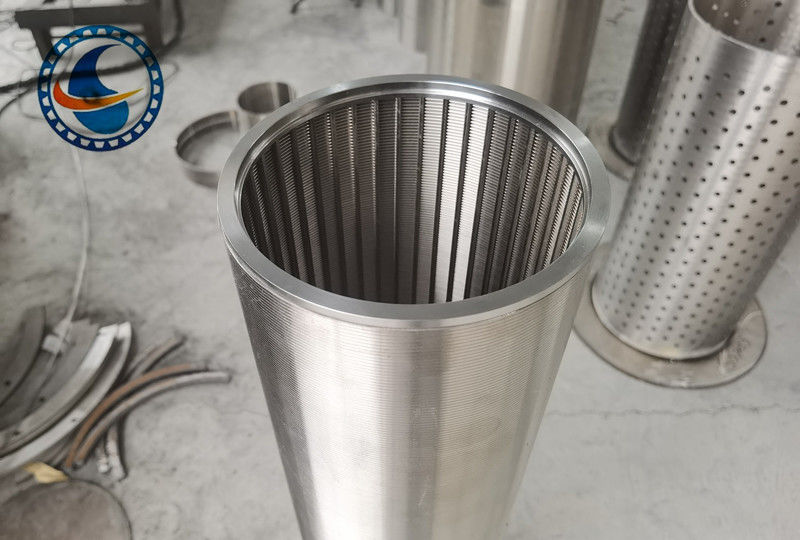

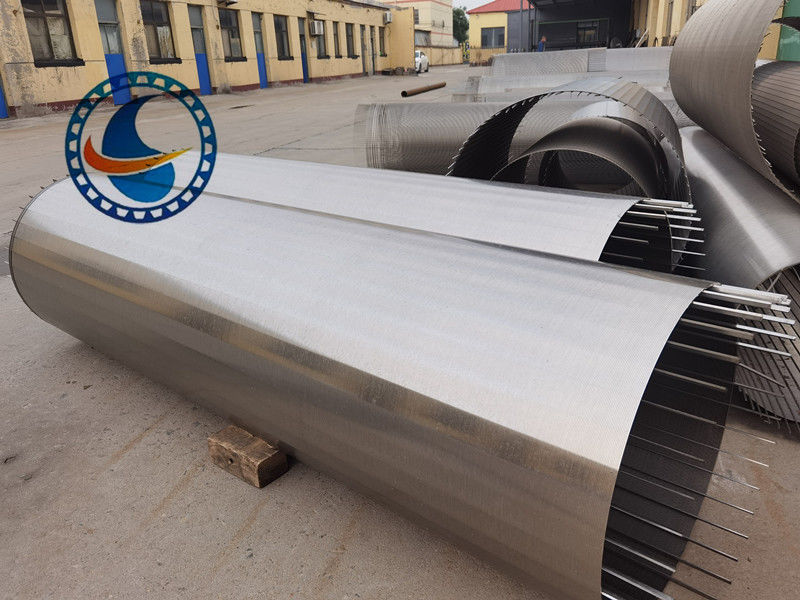

SS304 Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe

The surface profile of the wedge wire screen filter pipe comprises of a wire also known as V-shaped wire.

Remember, there are four types of surface profile available for a wedge wire filter,that is, flat wire, triangle wire, round wire, and trapezoid wire.

The primary material of surface profile in most wedge wire filters is steel due to its characteristics when it comes to filtration of fluids.

Depending on the directional flow of your fluid, the surface profile can either be horizontal or vertical.

The width size available for the surface profile ranges from 1.0mm to 4.0mm while the height varies from 2.0mm to 6.5mm.

Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe Sizes:

Material : stainless steel wire.Such as: SS304, SS201, SS316L etc; Hastelloy C276; 904L; Duplex 2205,2507

Diameter : 26-1300 mm ,can make as customers request.

Slot: 0.02-100mm

Length :10-4000mm

End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.

Material	Stainless steel 304, 316L,Hastelloy C276; 904L; Duplex 2205,2507 etc.
Diameter	25mm-1300mm
Shape	Cylindrical
Slot	0.02mm-10mm
Thickness	4mm-12mm
Feature	Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells
Application	--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio

Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe Features:

1. It has high mechanical strength, can bear large pressure drops.
2. The wedge-type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, used in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
